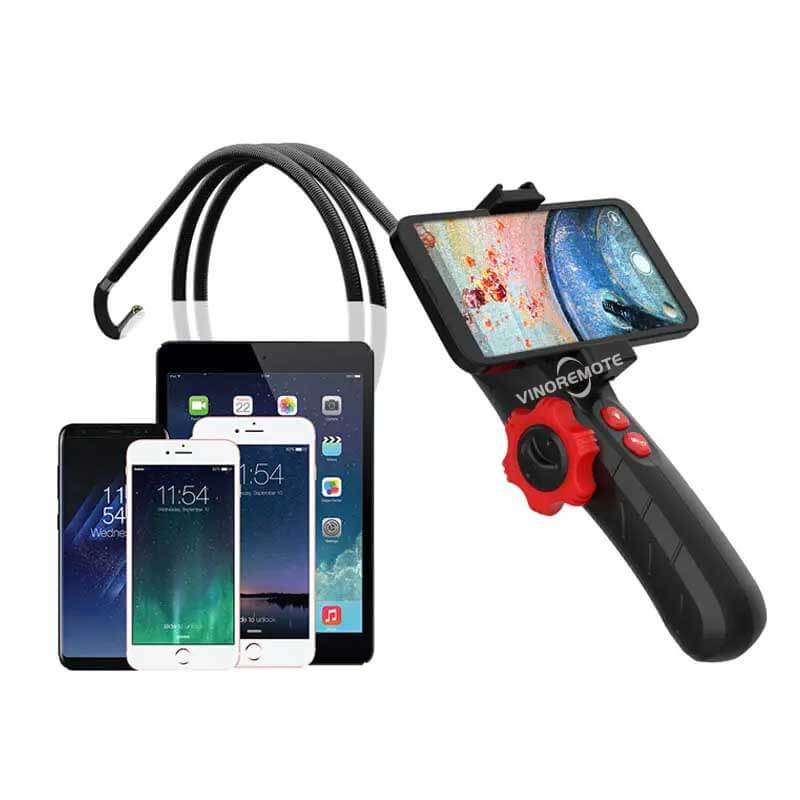

5 inch HD Screen Snake Borescope pipe inspection
Multi-purpose design for one machine
5 inch screen
Moble phone connection
PC computer esy replacement
Snake Camera Parameters
| Product | Two way articulatong borescope | ||
| Image sensor | 1/9″ CMOS | 1/6.5″ CMOS | 1/5″ CMOS |
| Effective pixels | 1280*720 | 1920*1080 | 1920*1080 |
| Focal distance | 20-50mm | 30-80mm | 30-80mm |
| view Angel | 80° | 75° | 70° |
| Lens size | 4.9mm | 6.0mm | 8.5mm |
| Semi rigid tube length | 1M | ||
| Light source | 0402 LED*6 | 0402 LED*8 | 0603 LED*8 |
| Working current | ≦200MA | ||
| Working temperature | -10-60°C | ||
| Articulation angle | two-way articulation | ||
| waterproof level | level IP67 snake camera | ||
Display parameters:
| Screen 5.0 | 5.0 IPS Screen |
| Effective pixels | 1280*720 |
| battery | 3.7V 50000MAH |
| Working current | monitor 500MAH, Camera Probe 180MA |
| Standby current | <40UA(microamps) |
| Max Power | 3.5W |
