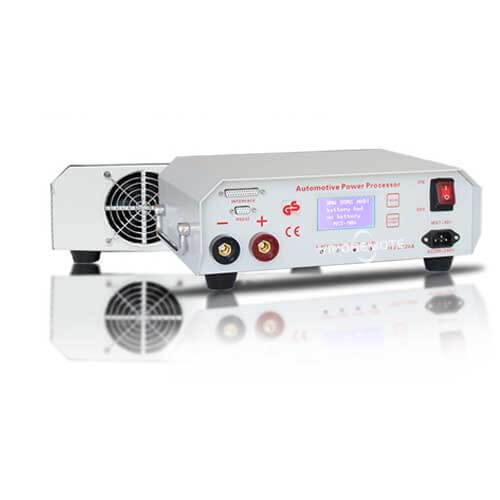

Automotive programming Regulated power supply
Description
Automotive Programming Dedicated Power Output Characteristics
DC voltage: 14.2V
Rated current: 120A
Rated power: 1700W
Ripple and noise: 100mVp-p
Automotive Programming Dedicated Power Input Characteristics
Rated input voltage: 220V (+/-20%)
Frequency range: 40-60HZ
Power factor: 0.95
Efficiency: 85%
Automotive Programming Dedicated Power Protection Features
Overload: 90-110% of rated output power
Over-voltage: 15V
Operating temperature: -40 – +70 C
Safety: UL60950, TUV EN60950-1
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC
Insulation resistance: I/P-O/P, I/P-FG:100M Ohms, 500VDC/25 /70%RH
EMC: EN55022, EN61000
Accessories details
1set charger host
1pcs red clip line
1pcs black clip line
1pcs power input line
Note:
1: Please use 10A or above of the power supply socket connected to the equipment. Please abide by the general rules of the safe use of electricity. A power supply socket with a ground wire must be used.
2:Verify that the connection between the positive and negative poles is correct when connecting the clip cable to the battery or vehicle.
3: After charging the wire into the connector, please tighten the right and ensure that the connection is reliable and then turn on the power switch.
4: The machine has high pressure, non professionals do not operate, so as not to shock.
5:This charger is only suitable for 12V lead-acid battery charging.
