Vgate 12-Way Post Terminal Distribution Block Bus Bar for Lithium or AGM Lead Acid Battery

12-Way Post Terminal Distribution Block Bus Bar 8AWG up to 4/0(XL) AWG Gauge Positive and Negative for Lithium or AGM Lead Acid Battery with Bolt Down Ends or Threaded Studs M10 or 3/8”-16

SKU: VgateO12M10 Category:

Vgate 12-Way Post Terminal Distribution Block Bus Bar, 8AWG up to 4/0(XL) AWG Gauge, M10 or 3/8”-16

Unlike other common brands of castings, Vgate battery terminal clamps are machined from 6061 aluminum. In addition to high precision, it also has high toughness and good corrosion resistance.

To neatening up wire installation and clean up cluttered battery terminals;
Coming in pairs (one positive, one negative; both of them are same size) (+/-);

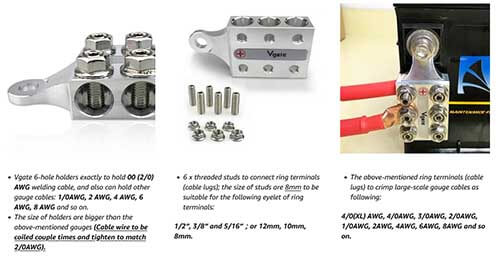

12-Way connectors: 6 x hole-holders and 6 x threaded studs.

Application for Following Batteries:

Battery Type: Lithium and Lead Acid Batteries (AGM, GEL, WET, MF and CA/CA)
Battery Voltage: 48V 36V 24V 12V 6V

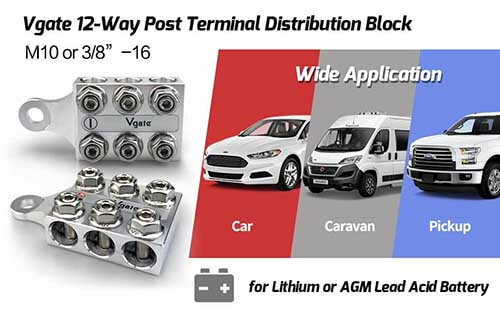

Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.
Remark: Bolt Down Ends including Top Post and Side Post.
Post Size: M10 or 3/8”-16;
Battery Brands:

12-Way Connectors: 6 x Hole-Holders and 6 x Threaded Studs.

Attention

Please make confirmation on post size before placing order, which is variety, like 3/8”-16, 5/16”-18, 1/4”-20, M10, M8, M6, M5, M4, all battery terminals for these post sizes can be found in our store.
Terminals to be coming in pairs; both of them are same size.

NOTE:

If our product does not meet the size you need, you can buy the product with a similar or larger wire hole size, and then buy the shims of the corresponding size for the battery.

Please order as per positive post size, because negative is less than positive normally, if both of them size is different, and to buy the bolt and nut for negative post separately.

Please install the metal washers according to the actual usage to ensure a firm installation.

How to install terminal:

1. Choose correct size of bolt and nut (mm or inch due to difference on thread spacing);
2. Not to mix up mm and inch screw/ nut after open poly package;
3. Screw down studs to bolt down end battery(please keep length of stud enough to tighten down terminal), then put flat washer first, if mounting base size is too small (it’s necessary, or can not tighten down terminal);
4. Remark: step 3&4&5 are also application for threaded studs battery;
5. Continue to put terminal, another flat washer, spring washer one by one, then tighten down nut;
6. Step 3&4 is application for cup head bolt;
7. To increase or decrease quantity of flat washer to tighten down terminal.

How to connect wire:

1. Unscrew;
2. Insert wire into hole-holder, then tighten down screw;
3.To do so as the above for the rest 5 holders;

Package Includes:

1 X Positive Terminal
1 X Negative Terminal
Bolt & Nut (2 sets of M10 and 2 sets of 3/8”-16)
8 pcs of Flat Washer & 2 pcs of Spring Wash



Weight0.59 kg
