Vgate 20-Stud AGM Battery Post Terminal Distribution Block

Vgate 20-Stud AGM Battery Post Terminal To Connect 8AWG Up To 4/0(XL) Gauge Wire For Tapered Top Post SAE/DIN/EN. Vgate Battery Terminal 20-Stud connectors Avaliable ensures a variety of size wiring requirements.

SKU: VgateA20 Category:

Vgate 20-Stud AGM Battery Post Terminal To Connect 8AWG Up To 4/0(XL) Gauge Wire For Tapered Top Post SAE/DIN/EN. Vgate Battery Terminal 20-Stud connectors Avaliable ensures a variety of size wiring requirements.

To Connect 8AWG Up To 4/0(XL) Gauge Wire For Tapered Top Post SAE/DIN/EN

Vgate battery terminal clip is made of 6061 aluminum instead of cheap and inferior castings.

In addition to high precision, it also has high toughness and good corrosion resistance.

1) To neatening up wire installation and clean up cluttered battery terminals
2) Vgate heavy duty battery clamps come in pairs (one positive, one negative) (+/-)

Application for Following Batteries:

1.Battery Type: Lead Acid Battery (AGM, GEL, WET, MF and CA/CA);
2.Battery Post Type: SAE/ DIN/ EN (But JIS Pencil Post not Included)
3.Battery Voltage:48V, 36V, 24V, 12V, 6V;
4.Battery for:Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.

Applicable to the Following Battery Types

Can Not Tighten the Terminal Firmly?

1. Please make sure to place the product at the bottom of the positive and negative poles of the battery.
2.If you can’t tighten it at one time, you must first loosen or unscrew the hexagon socket screw, put the product to the bottom and tighten it again, so that it will not loosen.
3.Please lengthen handle of allen key, if cannot be tightened up as above.
4.Move up the 8mm screw to keep enough space to connect cable lug.

Vgate 20-Stud AGM Battery Post Terminal Distribution Block

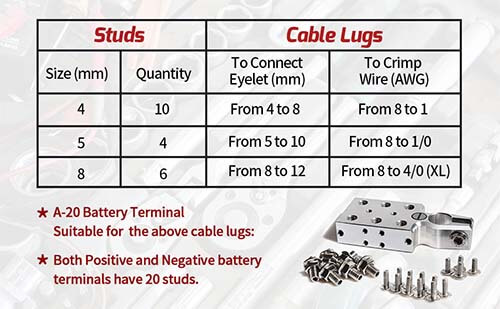

Vgate A-20 Battery Terminal Suitable for the Following Cable Lugs

This product is only used for SAE/DIN/EN battery pile heads. The steps below should be followed to ensure a smooth installation:

If the battery pile head is not worn out, please operate as follows:

1.The battery terminal clamp can be placed directly at the battery pile head, and the screw of the pile head can be tightened, without using the thin shim attached with the product; Do not shake the product during screwing (In addition, please note that the terminal clamp must be placed at the bottom of the pile head, otherwise it cannot be tightened down.)
2.If it cannot be tightened down:

a) Completely loosen the screw of the pile head, let the clamp relax naturally, and then operate the above steps again;

b) If it still can not be tightened down according to the above steps, please lengthen the handle length of the hexagon wrench, and then operate according to the above steps. In order to ensure safety, the chuck of the product is pretty strong, and it is not easy to tighten down if the strength is not enough.

If the battery pile head is worn out, please operate as follows:

1.Insert the thin shim attached with the product: put the thin shim close to the battery pile head, and then place the chuck; the thin shim can be placed around the pile head or stacked according to the actual needs; In addition, please increase or decrease the shim according to the wear degree of the pile head (Please be noted the shim is ultra-thin, do not hurt hands.)

2.Then follow Step 2 above.

Important Notice

Application for SAE/ EN/ DIN:

It’s very important to lengthen the handle of Allen key to long enough as the attached picture, because short handle allen key cannot work.Our Vgate terminal clamp is very strong to ensure safety.

Note: This product does not include this wrench.

Package Includes:

1* Positive Battery Terminal Clamp (19.5 ± 0.4mm)

1* Negative Battery Terminal Clamp (17.9 ± 0.4mm)

Teeth Shims

Metal Shims



Weight0.59 kg
