2.7 HD Inspection Camera Industria portable handheld endoscope


2.7 HD Inspection Camera a handheld borescope, can realize real-time inspection of small spaces.portable handheld endoscope widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical.


This endoscop is a handheld endoscope device. Through the image and video functions of the endoscope, non-destructive inspection of small parts and places where the human eye cannot directly observe; it is widely used in aviation, automotive, pipelines, machinery Testing areas in the chemical and other industries.

Handheld Endoscope Parameters

Screen : 2.7-inch fixed screen
Snake tube length: 1 meter metal gooseneck snake tube
LED: 6 LED lights
View angle: 60°
Focus distance: 30 ~ 80mm
Working temperature : -20 ~ 60 degrees
Battery: 4 * AA alkaline batteries (Shipped without battery)
Waterproof grade: IP67
Support photo recording function
Support 12 languages: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Russian, French, German, Czech, Portuguese, Polish, Dutch, Turkish

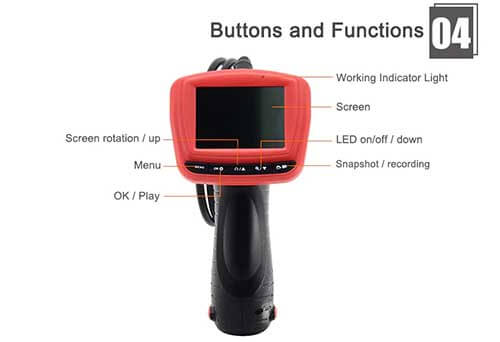

Handheld Endoscope Fuction

1. Real time clock with photo and video.
2. Time label of document saving.
3. Picture freezing and taking photos in frozen state.
4. Circulate recording
5. To enlarge or reduce the maximum: 8 times
6. Automatic recognition of NTSC/PAL
7. Composite video output


For automotive
for industrial machine
for air conditioning
for pipeline
for circuit
for line

Snake tube

Image sensorEffective pixelCamera diaLEDView angleFocus distance
1/5˝ CMOS sensor1600×12008.5mm6X0603 LED60˚30mm-80mm
1/10˝ CMOS sensor640×4805.5mm6X0402 LED60˚30mm-80mm


ScreenSignal inputImage rotatingStorage functionMenu languagePicture taking & Video recording
960 x 240 2.7 inch screenUSB digital signal90˚/180˚/270˚/360˚Support Max 32GB TF card12 languageYes
Weight1.2 kg
