Vgate vLinker FD OBD2 WiFi Code Reader ELM327 FORScan J2534 Scanner

Vgate vLinker FD OBD2 WiFi for iOS, Android, and Windows. Vgate vLinker FD WIFI OBD2 ELM327 Auto Diagnostic Tool is a diagnostic scan tool, trip computer, logger, and real-time performance monitor.

SKU: VLINKER008 Category:

Recommended by FORScan for Android & iOS.

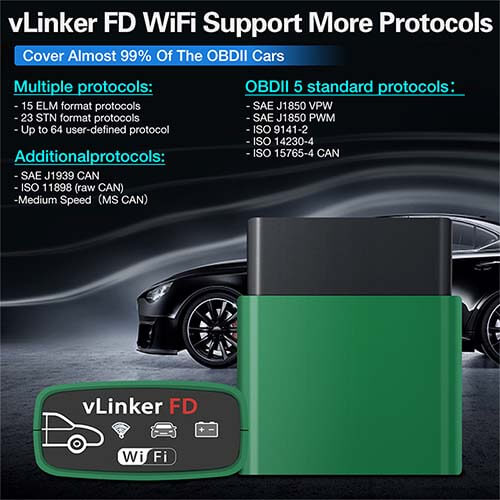

1.Support MS-CAN protocols – can access these proprietary Ford networks in addition to the 5 standard OBD-II protocols.
2.Fully compatible with ELM’s AT command set (ELM327, ELM329) and STN’s ST command set.Works with FORScan, Carista, Torque, DashCommand, JScan, BimmerCode and dozens of other apps
4.Over-voltage, over-current, over-temperature and battery drain protection, firmware updates. TP transmission protocol,Ensure wireless communication security.

Support Firmware UPGRADE: Please contact our team.

Compared with the Vgate iCar Pro series, the Vgate vLinker FD series has any improvement?

USART data buffer up to 2K bytes, baud rate increased to 230.4Kbps. Faster, more reliable, and more feature-rich than its predecessors.
Not only supports fully compatible ELM327 AT commands, but also compatible with ELM329 AT commands.
Fully compatible with STN’s ST command set.
OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.
Supports battery voltage drop, OBD bus active, etc. Up to 3 ways to wake up from sleep mode.
Over-voltage, over-current, over-temperature and battery drain protection.
TP transmission protocol, Ensure wireless communication security.
Superior compatibility-works with more 3rd party apps & software than any other adapter.

Hardware Upgrade-Wider Car Compatibility

1. Vgate vLinker FD WiFi works with all 1996 and newer 12V petrol cars compatible with standard OBD2 protocols, and all 1996 and newer 12V small diesel vehicles with a load of 6.5T or less supporting the OBD2 protocols.
2. Do not use on a 24V power diesel car.
3.The vLinker FD WiFi proprietary connection algorithm enables FD to connect to more makes and models than any other scan tool. It also provides access to MS-CAN networks in addition to all legislated OBD-II protocols.

More Mainstream Apps

1.APPs: TORQUE Lite/Pro, FORScan Lite, JScan, OBD Fusion, DashCommand, Car Scanner ELM OBD2, BimmerCode, inCarDoc, Dr.Prius, etc.
2.There are more apps waiting to be explored. Works with more 3rd party apps & software than any other adapter.

BatterySaver Technology

1. Thanks to the unique BatterySaver technology you can rest assured that, unlike other OBD adapters, Vgate vLinker FD WiFi won’t drain your battery if you leave it plugged in.
2.Operating Current is 62 mA, automatic sleep in idle state, sleep current is as low as 3mA.

Vgate vLinker FD WiFi Connection Steps – For Android

Weight0.28 kg
